11/64" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42011

Chicago-Latrobe

11/64" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42011

MFR# 42011Series 150WLPN

$7.92List $10.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTiCN

Description

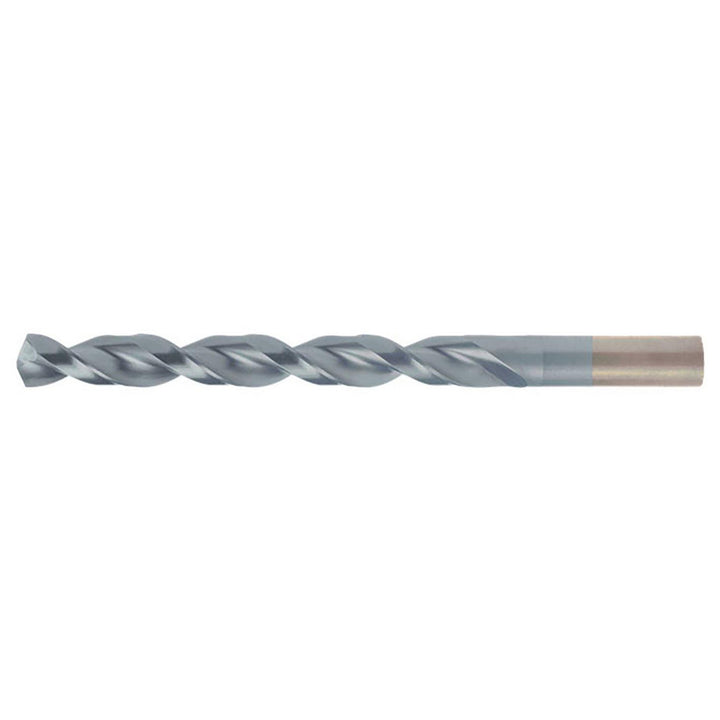

The Chicago-Latrobe 42011 is a 11/64" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 2-1/8 flute length, 3-1/4 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-1/8
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in3-1/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.1719
Shank length1.1250
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
