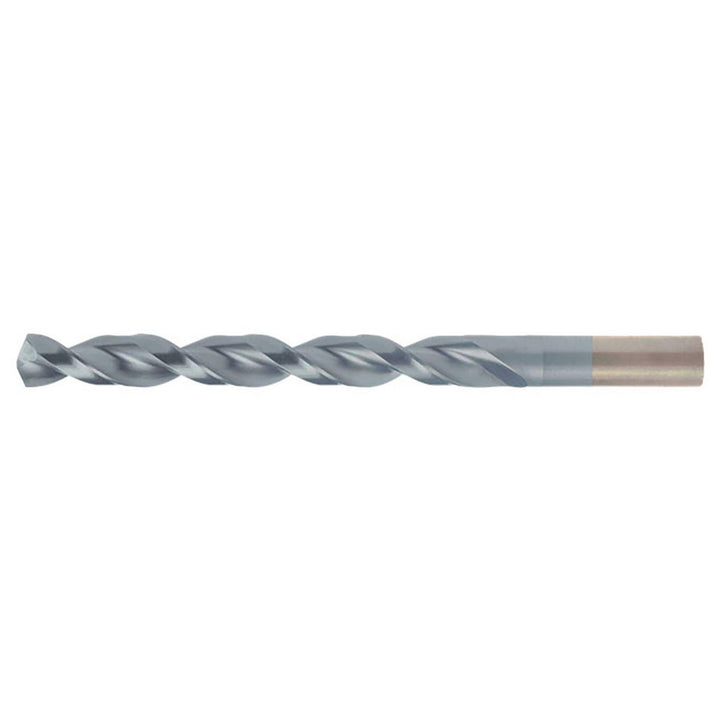

3/16" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42012

Chicago-Latrobe

3/16" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42012

MFR# 42012Series 150WLPN

$8.19List $10.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 42012 is a 3/16" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 2-5/16 flute length, 3-1/2 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-5/16
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in3-1/2
Point typeNotched
Primary workpiece materialSteel
Shank diameter in3/16
Shank length1.1875
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
