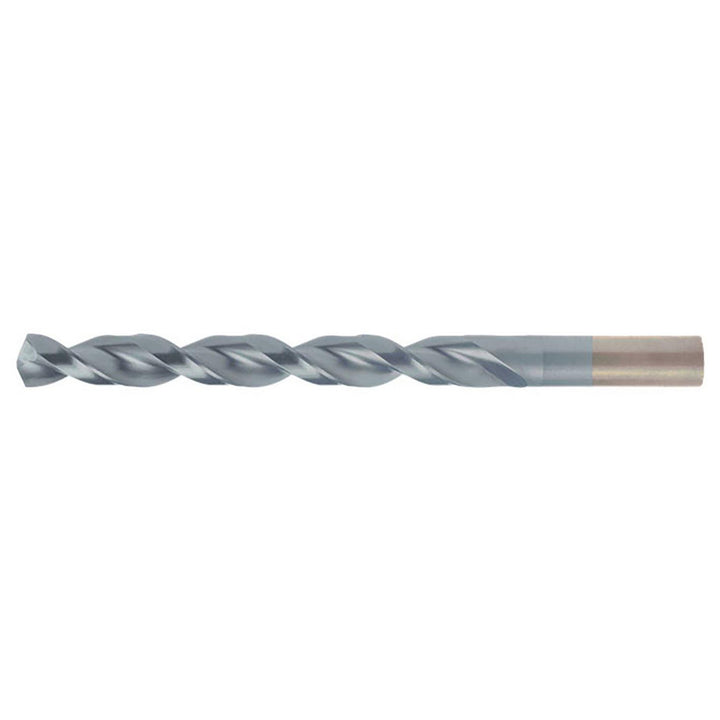

7/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42014

Chicago-Latrobe

7/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42014

MFR# Chicago-Latrobe-42014Series 150WLPN

$12.07List $15.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 42014 is a 7/32" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 2-1/2 flute length, 3-3/4 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-1/2
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in3-3/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.2188
Shank length1.2500
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
