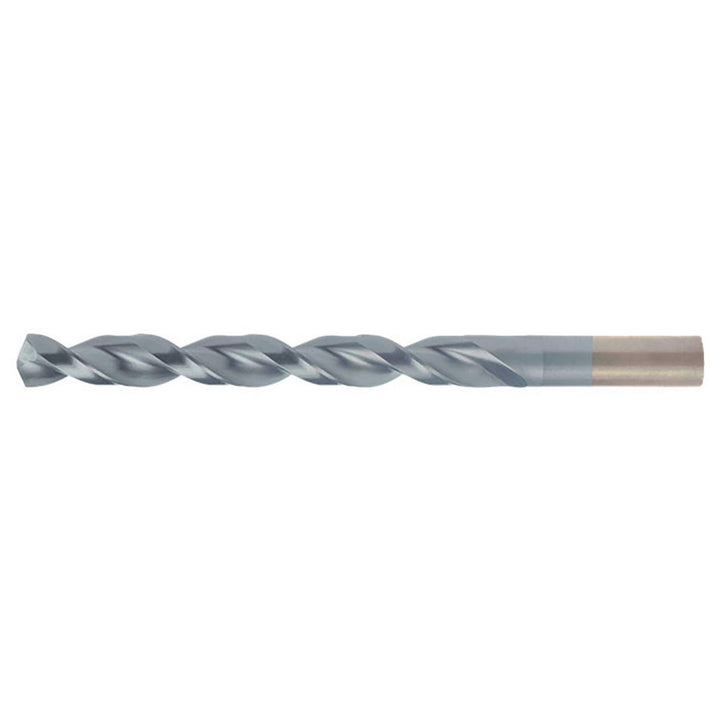

9/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42018

Chicago-Latrobe

9/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42018

MFR# 42018Series 150WLPN

$14.85List $19.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 42018 is a 9/32" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 2-15/16 flute length, 4-1/4 overall length. Series 150WLPN.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-15/16
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in4-1/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.2812
Shank length1.3125
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
