Chicago-Latrobe

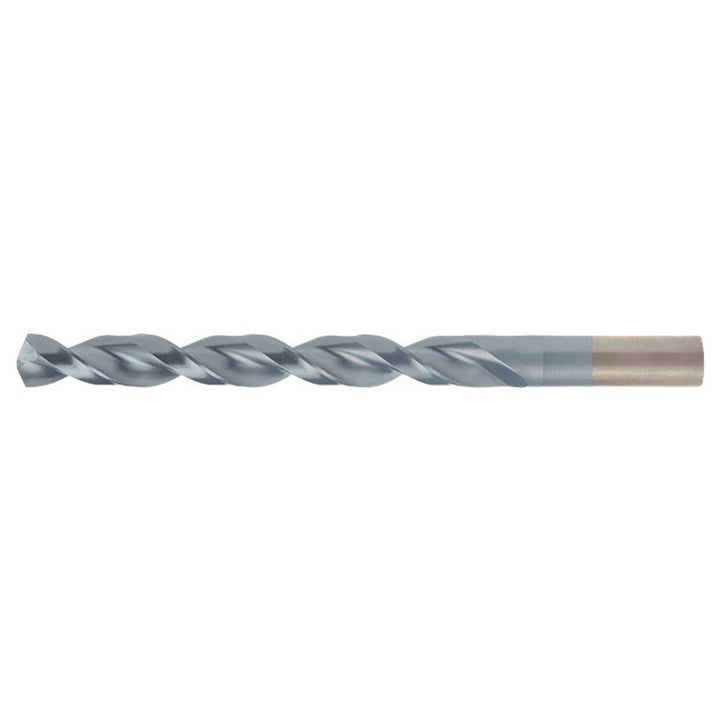

7/16" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42028
MFR# 42028Series 150WLPN
$31.31List $39.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
CoatingTiCN
Description
The Chicago-Latrobe 42028 is a 7/16" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 4-1/16 flute length, 5-1/2 overall length. Series 150WLPN.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in5-1/2
Point typeNotched
Primary workpiece materialSteel
Shank diameter in7/16
Shank length1.4375
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
