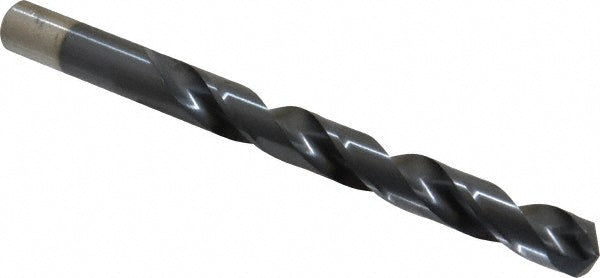

1/2" High Speed Steel Drill Bit, TiAlN, 135° point - Chicago-Latrobe 42632

Chicago-Latrobe

1/2" High Speed Steel Drill Bit, TiAlN, 135° point - Chicago-Latrobe 42632

MFR# 42632Series 150ASP-TA

$28.08List $36.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiAlN

Description

The Chicago-Latrobe 42632 is a 1/2" High Speed Steel drill bit with a TiAlN finish, 135° point. Suited for titanium. 4-1/2 flute length, 6 overall length. Series 150ASP-TA.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTiAlN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Flute length in4-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialTitanium
Shank diameter in1-1/2
Shank length1.5000
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
