Chicago-Latrobe

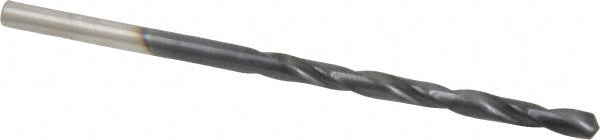

#30 High Speed Steel Drill Bit, TiAlN, 135° point - Chicago-Latrobe 42700
MFR# 42700Series 150ASP-TA
$4.67List $5.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Chicago-Latrobe 42700 is a #30 High Speed Steel drill bit with a TiAlN finish, 135° point. Suited for titanium. 1-5/8 flute length, 2-3/4 overall length. Series 150ASP-TA.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiAlN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute length in1-5/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialTitanium
Shank diameter in1-1/8
Shank length1.1250
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
