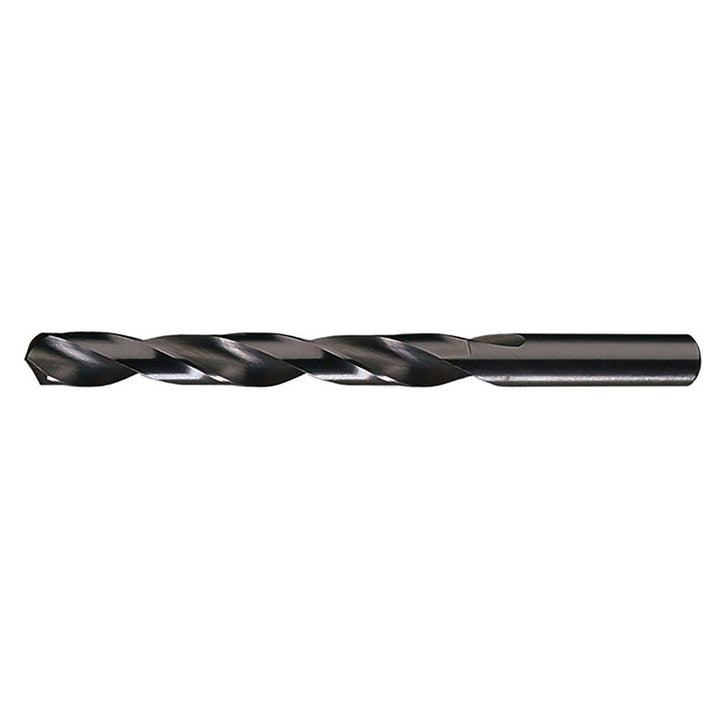

21/64" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 44021

Chicago-Latrobe

21/64" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 44021

MFR# 44021Series 150

$4.61List $5.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes2

Description

The Chicago-Latrobe 44021 is a 21/64" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 3-5/16 flute length, 4-5/8 overall length. Series 150.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-5/16
Flute typeSpiral
Number of flutes2
Overall length in4-5/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in21/64
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
