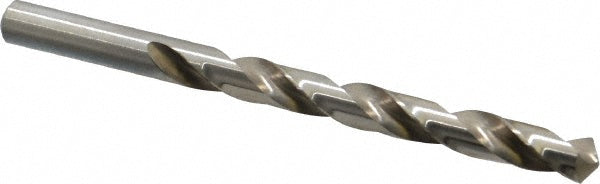

3/8" High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44224

Chicago-Latrobe

3/8" High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44224

MFR# 44224Series 150D

$6.02List $7.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2

Description

The Chicago-Latrobe 44224 is a 3/8" High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 3-5/8 flute length, 5 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
