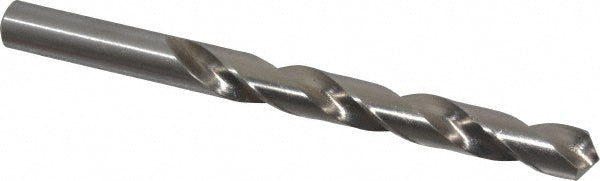

9/16" High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44236

Chicago-Latrobe

9/16" High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44236

MFR# 44236Series 150D

$30.97List $39.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/16
Flutes2

Description

The Chicago-Latrobe 44236 is a 9/16" High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 4-13/16 flute length, 6-5/8 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0012 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit materialHigh Speed Steel
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length in4-13/16
Flute typeSpiral
Number of flutes2
Overall length in6-5/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in9/16
Shank length1.8125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
