Chicago-Latrobe
#64 High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44334
MFR# 44334Series 150D
$1.56List $1.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

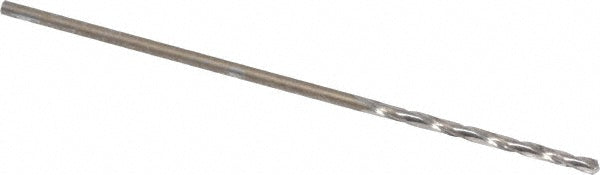

The Chicago-Latrobe 44334 is a #64 High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 5/8 flute length, 1-1/2 overall length. Series 150D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingBright
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0360
Drill bit size range0.0000 - 0.0500
Drill bit size wire#64
Drill point angle degrees118
Flute length in5/8
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
