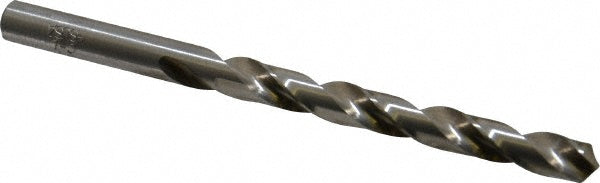

Letter M High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44383

Chicago-Latrobe

Letter M High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44383

MFR# 44383Series 150D

$4.42List $5.66 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 44383 is a Letter M High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 3-1/16 flute length, 4-3/8 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.2950
Drill bit size letterM
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in3-1/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2950
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
