Chicago-Latrobe

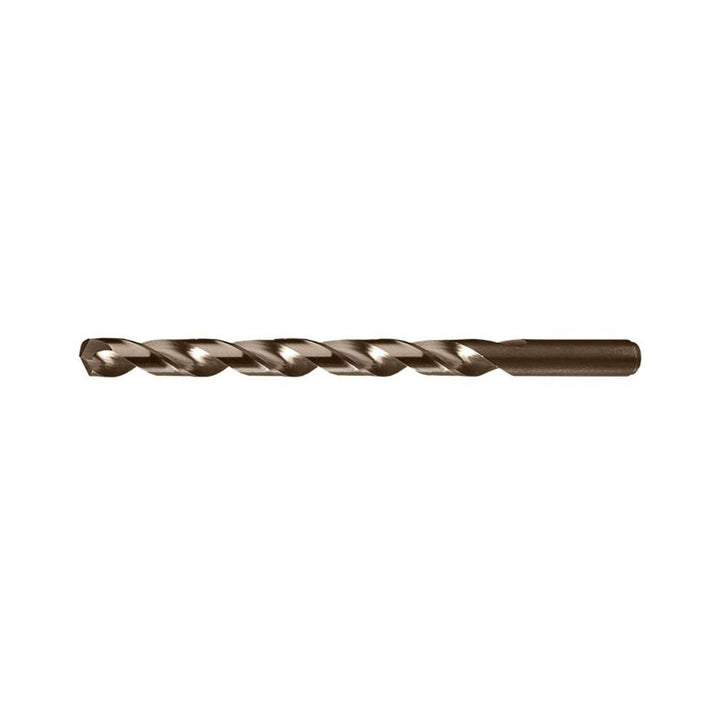

1/16" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44804
MFR# 44804Series 520
$7.71List $9.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
CoatingCoated
Description
The Chicago-Latrobe 44804 is a 1/16" Cobalt drill bit with a Coated finish, 135° point. 1-3/4 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/16
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length3
Point typeSplit
Shank diameter in1/16
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
