Chicago-Latrobe
7/64" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44806
MFR# 44806Series 520
$10.60List $13.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/64
CoatingCoated
Description

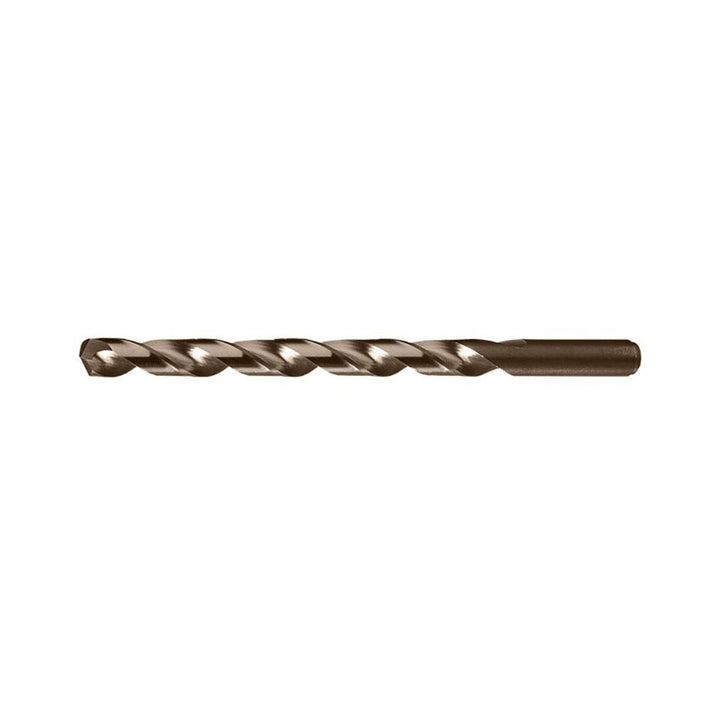

The Chicago-Latrobe 44806 is a 7/64" Cobalt drill bit with a Coated finish, 135° point. 2-1/2 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in7/64
Drill point angle degrees135
Flute length in2-1/2
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length4-5/8
Point typeSplit
Shank diameter0.1094
Shank length2.1250
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
