Chicago-Latrobe

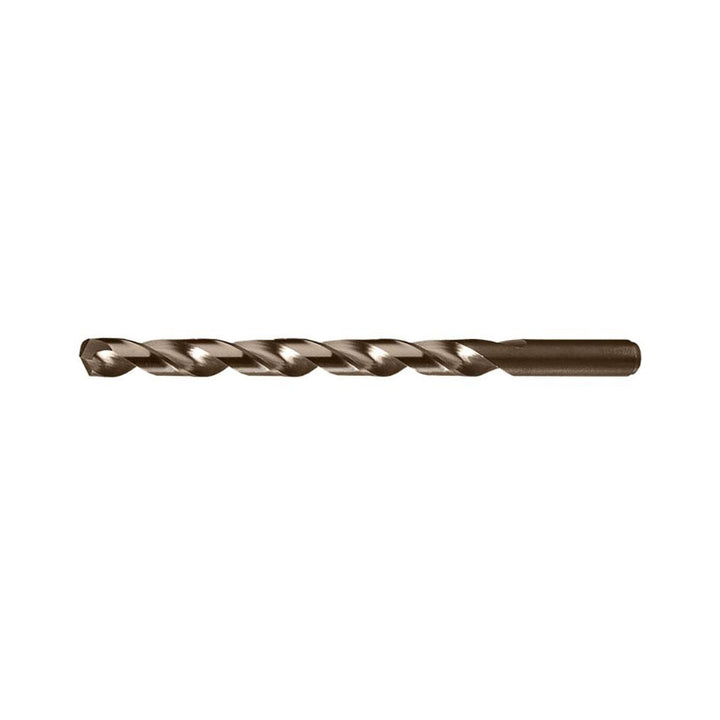

1/8" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44808
MFR# 44808Series 520
$11.14List $14.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingCoated
Description
The Chicago-Latrobe 44808 is a 1/8" Cobalt drill bit with a Coated finish, 135° point. 2-3/4 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit size in1/8
Drill point angle degrees135
Flute length in2-3/4
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length5-1/8
Point typeSplit
Shank diameter0.1250
Shank length2.3750
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
