Chicago-Latrobe

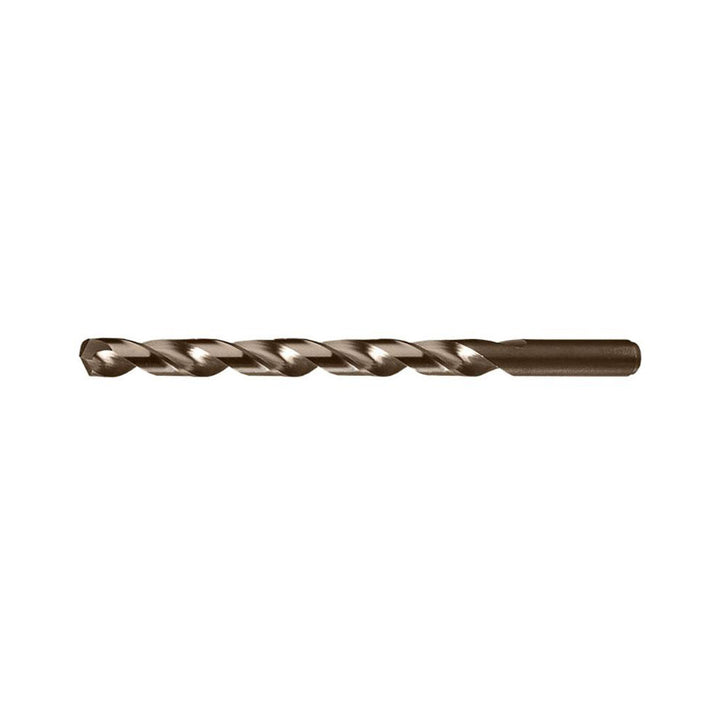

7/32" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44814
MFR# 44814Series 520
$17.04List $21.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
CoatingCoated
Description
The Chicago-Latrobe 44814 is a 7/32" Cobalt drill bit with a Coated finish, 135° point. 3-5/8 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size in7/32
Drill point angle degrees135
Flute length in3-5/8
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length6
Point typeSplit
Shank diameter0.2188
Shank length2.3750
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
