Chicago-Latrobe
15/64" Cobalt Drill Bit, Black Oxide, 135° point - Chicago-Latrobe 44815
MFR# 44815Series 520
$17.12List $21.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
CoatingBlack Oxide
Description

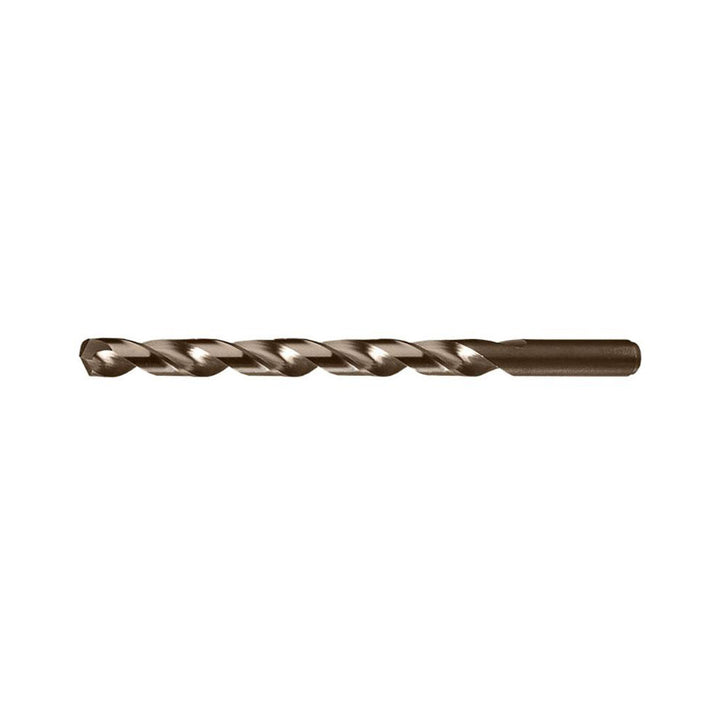

The Chicago-Latrobe 44815 is a 15/64" Cobalt drill bit with a Black Oxide finish, 135° point. 3-3/4 flute length. Series 520.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size in15/64
Drill point angle degrees135
Flute length in3-3/4
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM42
Overall length6-1/8in
Point typeSplit
Shank diameter in15/64in
Shank length2.3750in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
