Chicago-Latrobe

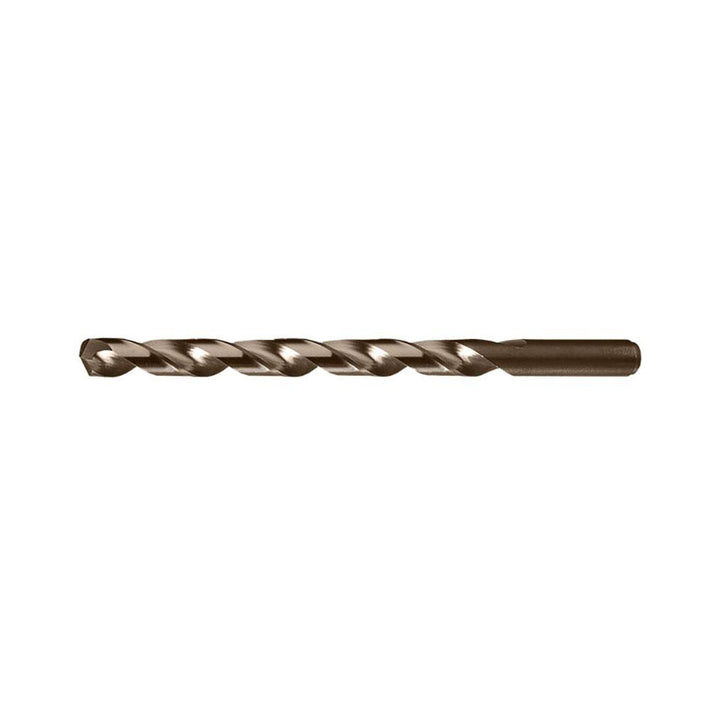

9/32" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44818
MFR# 44818Series 520
$20.81List $26.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
CoatingCoated
Description
The Chicago-Latrobe 44818 is a 9/32" Cobalt drill bit with a Coated finish, 135° point. 3-7/8 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in9/32
Drill point angle degrees135
Flute length in3-7/8
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length6-1/4
Point typeSplit
Shank diameter0.2812
Shank length2.3750
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
