Chicago-Latrobe

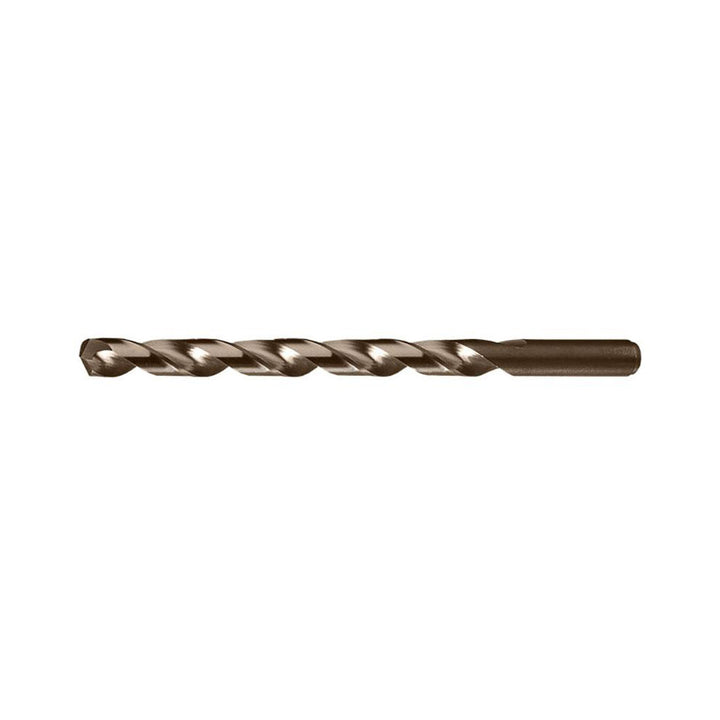

3/8" Cobalt Drill Bit, Black Oxide, 135° point - Chicago-Latrobe 44824
MFR# 44824Series 520
$30.71List $39.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
CoatingBlack Oxide
Description
The Chicago-Latrobe 44824 is a 3/8" Cobalt drill bit with a Black Oxide finish, 135° point. 4-1/4 flute length. Series 520.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in3/8
Drill point angle degrees135
Flute length in4-1/4
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM42
Overall length6-3/4in
Point typeSplit
Shank diameter0.3750
Shank length in2-1/2in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
