Chicago-Latrobe

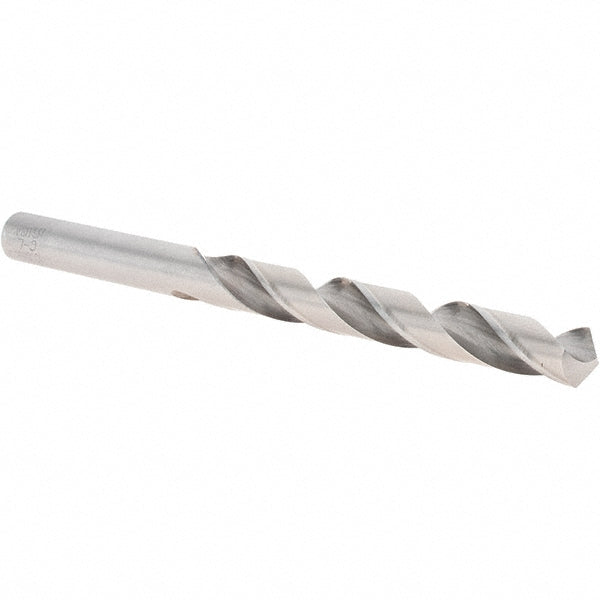

0.3937" High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 45343
MFR# 45343Series 150D
$7.38List $9.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 45343 is a 0.3937" High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. Series 150D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3937
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute length3.4252
Flute typeSpiral
Number of flutes2
Overall length5.2362
Point typeRadial
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3937
Shank length1.8110
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
