Chicago-Latrobe

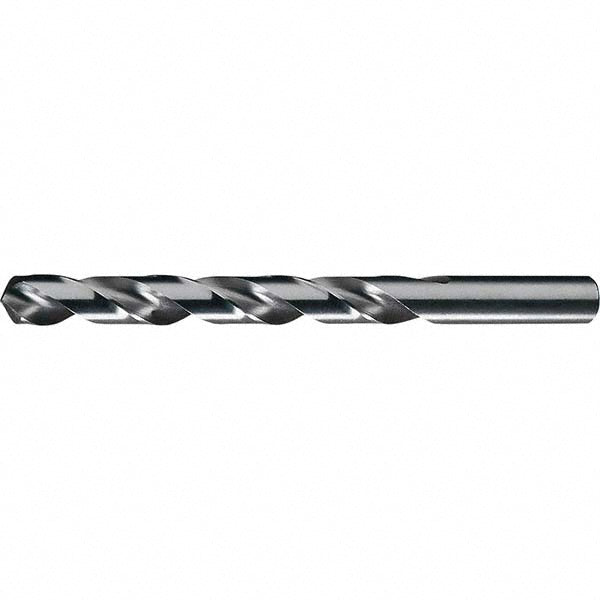

0.5118" HSS Drill Bit, 118° point - Chicago-Latrobe 45349
MFR# 45349
$19.26List $24.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Chicago-Latrobe 45349 is a 0.5118" HSS drill bit, 118° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.5118
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length3.9764
Flute typeRegular Spiral
Overall length5.9449
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.5118
Shank length1.9685
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
