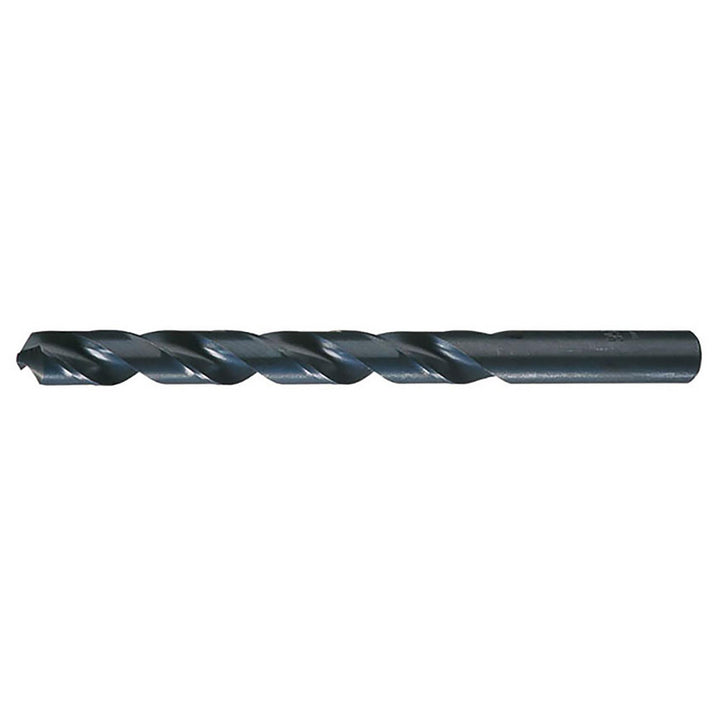

9/64" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45609

Chicago-Latrobe

9/64" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45609

MFR# 45609Series 150ASP

$1.74List $2.23 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2

Description

The Chicago-Latrobe 45609 is a 9/64" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, stainless steel, steel. 1-3/4 flute length, 2-7/8 overall length. Series 150ASP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeSplit
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in9/64
Shank length1.1250
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
