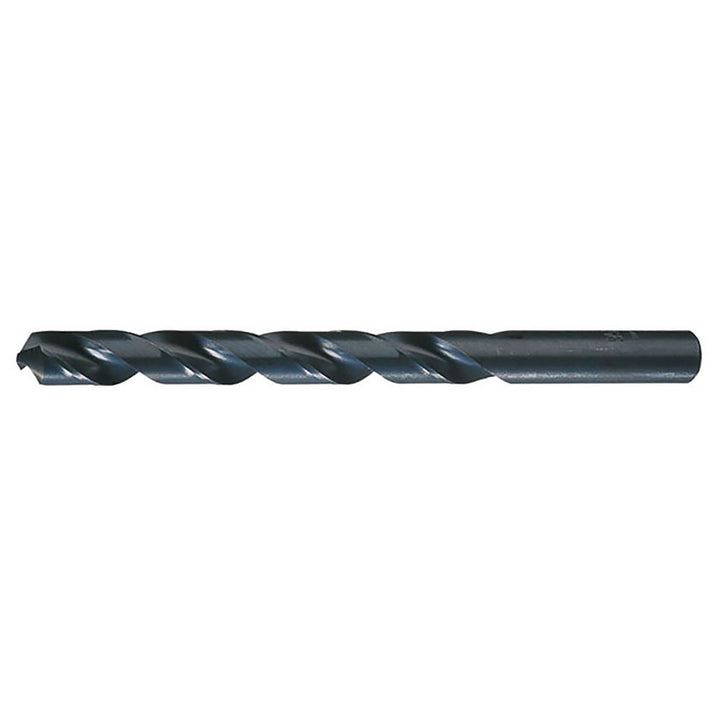

#14 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45684

Chicago-Latrobe

#14 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45684

MFR# 45684Series 150ASP

$2.45List $3.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 45684 is a #14 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, stainless steel, steel. 2-3/16 flute length, 3-3/8 overall length. Series 150ASP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1820
Drill bit size range0.1500 - 0.2000
Drill bit size wire#14
Drill point angle degrees135
Flute length in2-3/16
Flute typeSpiral
Number of flutes2
Overall length in3-3/8
Point typeSplit
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.1820
Shank length1.1875
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
