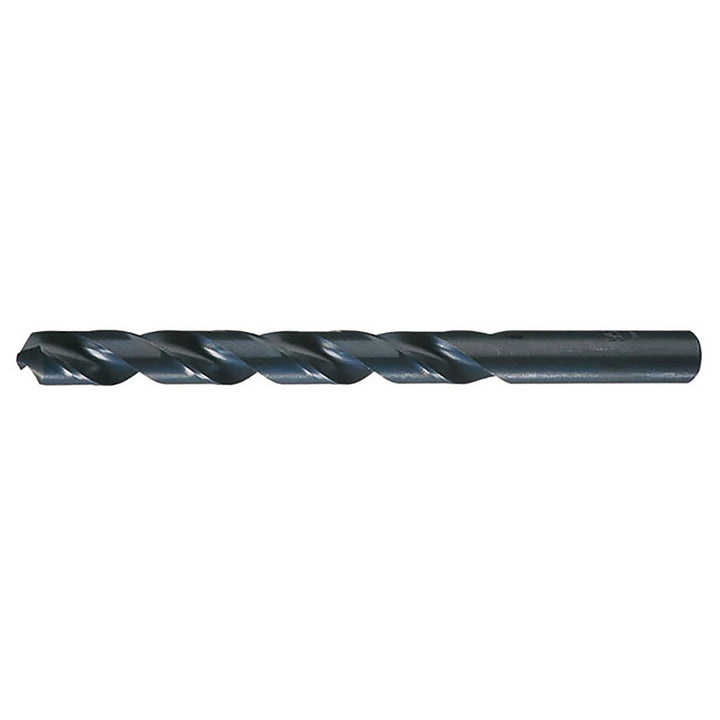

#42 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45712

Chicago-Latrobe

#42 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45712

MFR# 45712Series 150ASP

$1.53List $1.96 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 45712 is a #42 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, stainless steel, steel. 1-1/4 flute length, 2-1/4 overall length. Series 150ASP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.0935
Drill bit size range0.0500 - 0.1000
Drill bit size wire#42
Drill point angle degrees135
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-1/4
Point typeSplit
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.0935
Shank length1.0000
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
