Chicago-Latrobe
0.0984" Cobalt Drill Bit, Gold, 135° point - Chicago-Latrobe 46453
MFR# 46453Series 550
$2.70List $3.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

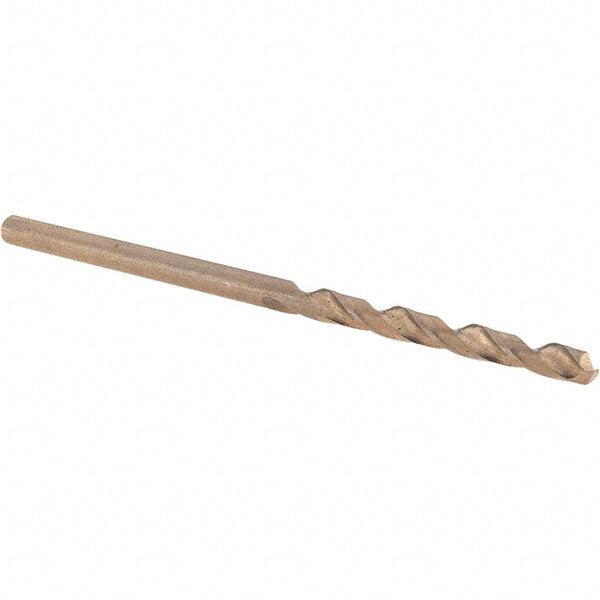

The Chicago-Latrobe 46453 is a 0.0984" Cobalt drill bit with a Gold finish, 135° point. Suited for titanium. Series 550.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0984
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length1.1811
Flute typeSpiral
Number of flutes2
Overall length2.2441
Point typeSplit
Primary workpiece materialTitanium
Shank diameter0.0984
Shank length1.0630
Shank typeStraight-Cylindrical
Specification designationDIN; NAS
Specification numberNAS 907-J
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
