Chicago-Latrobe

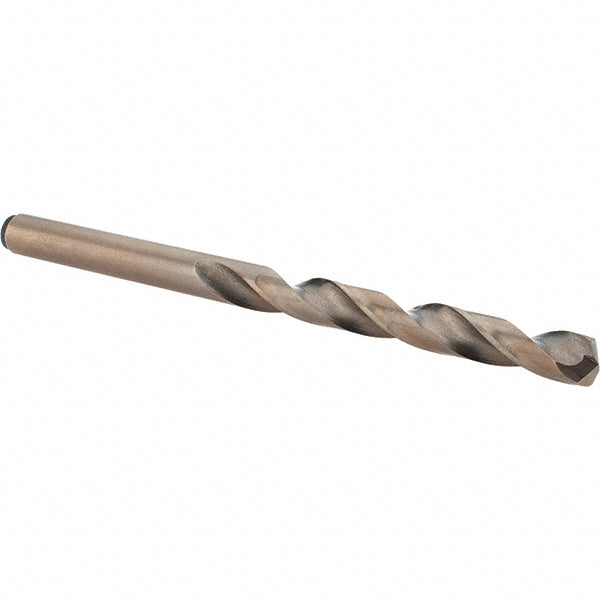

0.2638" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 46477
MFR# 46477Series 550
$5.95List $7.49
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Chicago-Latrobe 46477 is a 0.2638" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, stainless steel. Series 550.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2638
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length2.4803
Flute typeRegular Spiral
Number of flutes2
Overall length3.9764
Point typeSplit Point
Primary workpiece materialSteel; Stainless Steel
Shank diameter0.2638
Shank length1.4961
Shank typeStraight
Specification designationDIN; NAS
Specification numberNAS 907-J
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
