Chicago-Latrobe

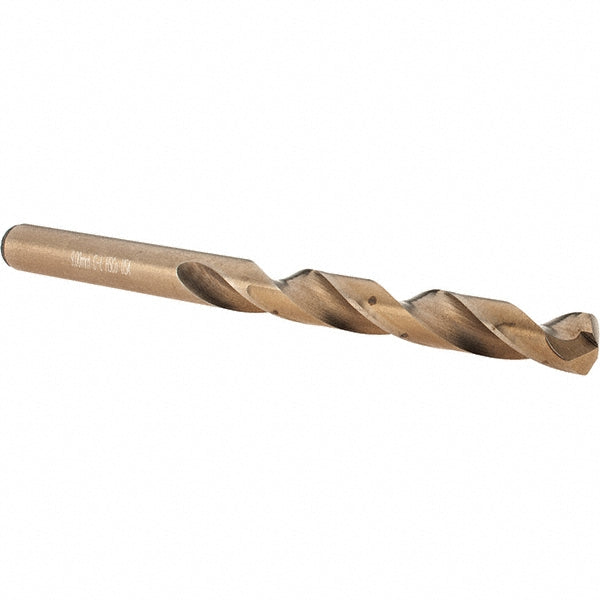

0.3543" Cobalt Drill Bit, Gold, 135° point - Chicago-Latrobe 46486
MFR# 46486Series 550
$10.49List $13.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 46486 is a 0.3543" Cobalt drill bit with a Gold finish, 135° point. Suited for titanium. Series 550.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3543
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length3.1890
Flute typeSpiral
Number of flutes2
Overall length4.9213
Point typeSplit
Primary workpiece materialTitanium
Shank diameter0.3543
Shank length1.7323
Shank typeStraight-Cylindrical
Specification designationDIN; NAS
Specification numberNAS 907-J
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
