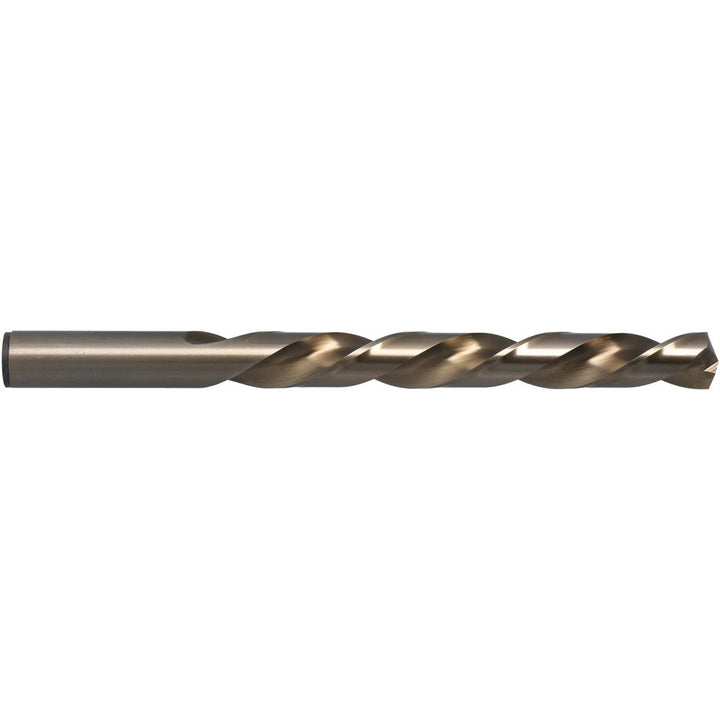

5/64" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 46505

Chicago-Latrobe

5/64" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 46505

MFR# 46505Series 550L

$4.99List $6.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/64
Flutes2
CoatingStraw

Description

The Chicago-Latrobe 46505 is a 5/64" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, high-temp alloy, cast iron. 1 flute length, 2 overall length. Series 550L.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionLeft Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in5/64
Drill point angle degrees135
Flute by diameter ratio3xD
Flute length in1
Flute typeRegular Spiral
Material gradeM42
Number of flats0
Number of flutes2
Overall length in2
Point typeSplit Point
Primary workpiece materialSteel; High-Temp Alloy; Cast Iron
Shank diameter in5/64
Shank length in1
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Tool applicationDrilling; Holemaking; Self-Centering
Web configurationTapered
Web thinningWeb-Thinned
