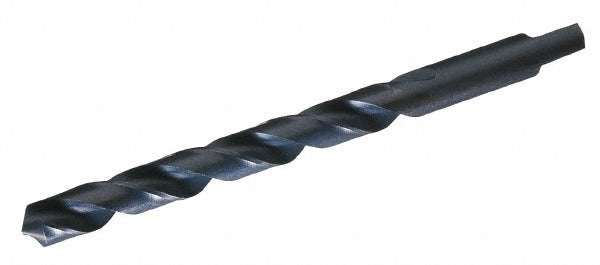

1/2" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 47525

Chicago-Latrobe

1/2" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 47525

MFR# 47525Series 250AN

$14.27List $18.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2

Description

The Chicago-Latrobe 47525 is a 1/2" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 4-1/2 flute length, 6 overall length. Series 250AN.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length in4-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Shank length1.5000
Shank typeTanged
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
