Chicago-Latrobe

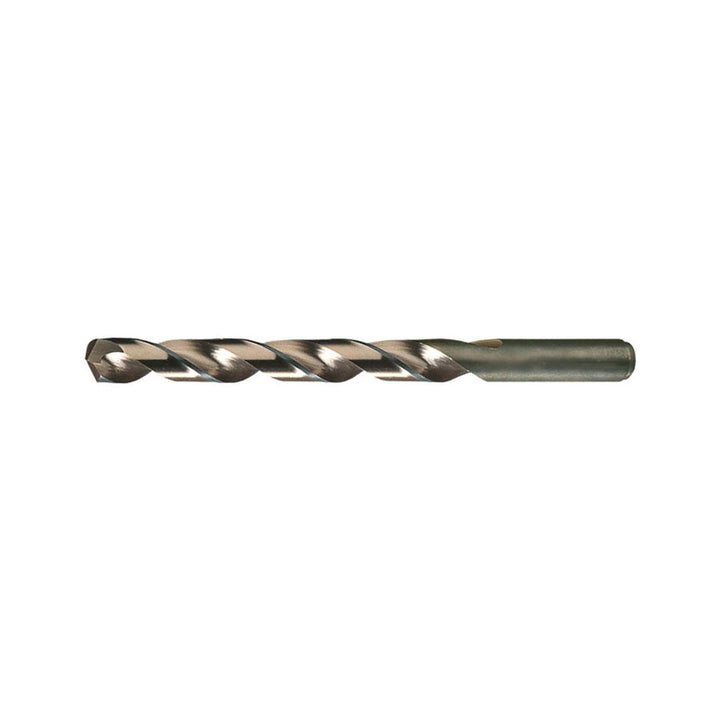

11/32" Cobalt Drill Bit, Gold, 135° point - Chicago-Latrobe 47722
MFR# 47722Series 550ASP
$8.95List $11.28
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 6 — minimum order 6
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
Description
The Chicago-Latrobe 47722 is a 11/32" Cobalt drill bit with a Gold finish, 135° point. Suited for titanium. Series 550ASP.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length3.4375
Flute typeSpiral
Number of flutes2
Overall length4.7500
Point typeSplit
Primary workpiece materialTitanium
Shank diameter in11/32
Shank length1.3126
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907-B
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
