Chicago-Latrobe

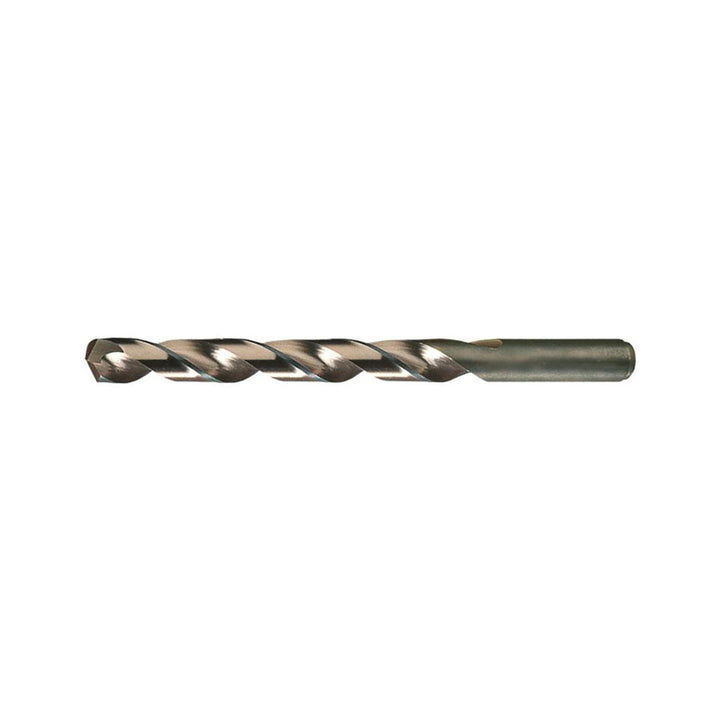

#29 Cobalt Drill Bit, Gold, 135° point - Chicago-Latrobe 47763
MFR# 47763Series 550ASP
$2.68List $3.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 47763 is a #29 Cobalt drill bit with a Gold finish, 135° point. Suited for titanium. Series 550ASP.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees135
Flute length1.7500
Flute typeSpiral
Number of flutes2
Overall length2.8750
Point typeSplit
Primary workpiece materialTitanium
Shank diameter0.1360
Shank length1.1252
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907-B
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
