Chicago-Latrobe

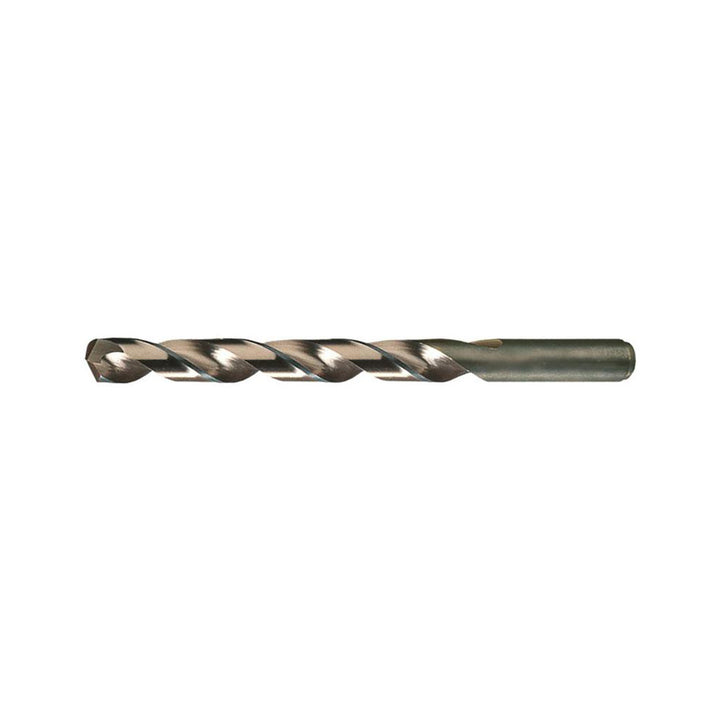

0.3425" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 47897
MFR# 47897Series 550ASP
$10.41List $13.11
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 6 — minimum order 6
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Chicago-Latrobe 47897 is a 0.3425" Cobalt drill bit with a Straw finish, 135° point. Suited for stainless steel, hardened materials. Series 550ASP.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3425
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length3.1890
Flute typeRegular Spiral
Number of flutes2
Overall length4.9213
Point typeSplit Point
Primary workpiece materialStainless Steel; Hardened Materials
Shank diameter0.3425
Shank length1.7323
Shank typeStraight
Specification designationNAS
Specification numberNAS 907-B
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
