Chicago-Latrobe

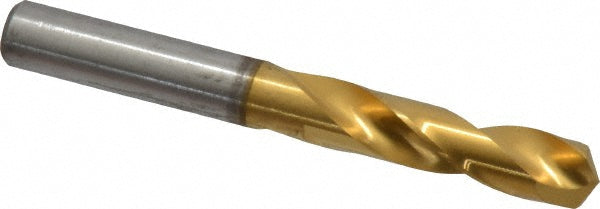

23/64" High Speed Steel Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 48223
MFR# 48223Series 2159
$11.10List $14.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 48223 is a 23/64" High Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 1-3/4 flute length, 3-1/16 overall length. Series 2159.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in3-1/16
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceHeavy-Duty
Web configurationParallel
Web thinningWeb-Thinned
