Chicago-Latrobe

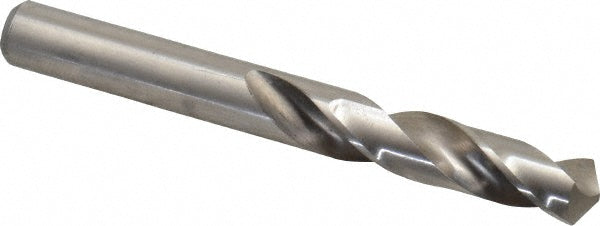

11/32" High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48522
MFR# 48522Series 157
$4.45List $5.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
Description
The Chicago-Latrobe 48522 is a 11/32" High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 1-11/16 flute length, 3 overall length. Series 157.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in11/32
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle118
Flute length in1-11/16
Flute typeSpiral
Number of flutes2
Overall length in3
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
