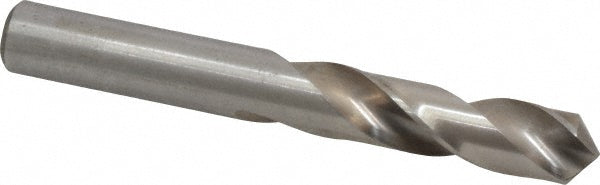

15/32" High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48530

Chicago-Latrobe

15/32" High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48530

MFR# 48530Series 157

$8.89List $11.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes2

Description

The Chicago-Latrobe 48530 is a 15/32" High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 2-1/8 flute length, 3-5/8 overall length. Series 157.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle118
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-5/8
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
