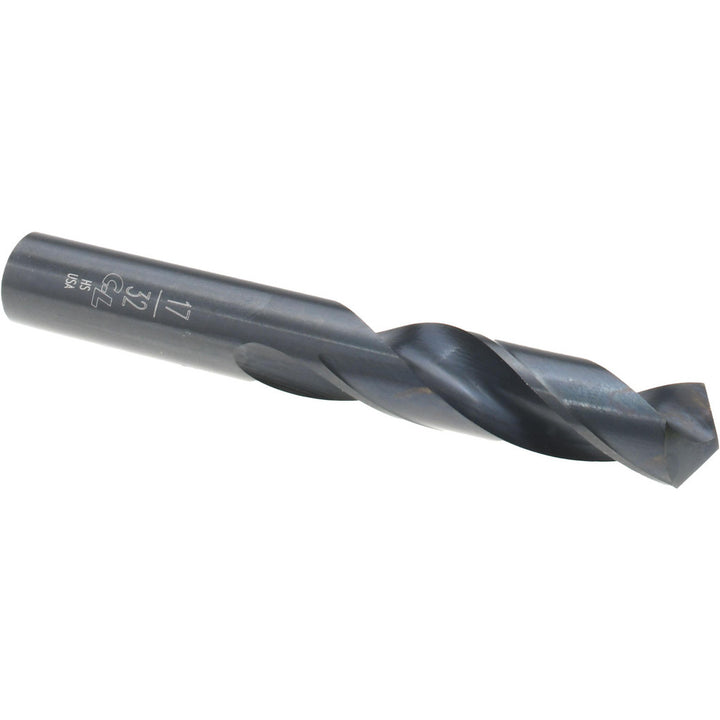

17/32" High-Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48534

Chicago-Latrobe

17/32" High-Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48534

MFR# 48534Series 157

$27.41List $35.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/32
Flutes2

Description

The Chicago-Latrobe 48534 is a 17/32" High-Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 2-3/8 flute length, 3-7/8 overall length. Series 157.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle118
Flute length in2-3/8
Flute typeSpiral
Number of flutes2
Overall length in3-7/8
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter0.5313
Shank length in1
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
