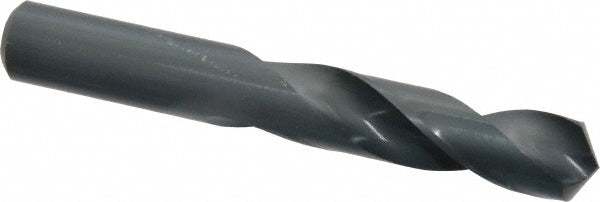

19/32" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Chicago-Latrobe 48538

Chicago-Latrobe

19/32" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Chicago-Latrobe 48538

MFR# 48538Series 157

$31.35List $40.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/32
Flutes2
CoatingCoated

Description

The Chicago-Latrobe 48538 is a 19/32" High Speed Steel Screw Machine drill bit with a Coated finish, 118° point. Suited for cast iron, non-ferrous metal, steel. 2-5/8 flute length, 4-1/8 overall length. Series 157.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in19/32
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle118
Flute length in2-5/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/8
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
