Chicago-Latrobe

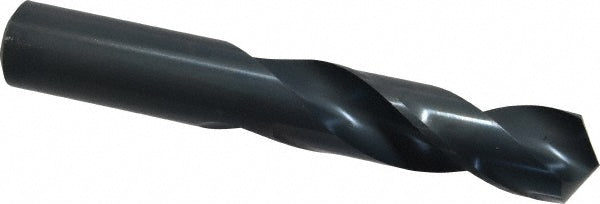

13/16" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Chicago-Latrobe 48552
MFR# 48552Series 157
$53.95List $69.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/16
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 48552 is a 13/16" High Speed Steel Screw Machine drill bit with a Coated finish, 118° point. Suited for cast iron, non-ferrous metal, steel. 3-3/8 flute length, 5-1/4 overall length. Series 157.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in13/16
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle118
Flute length in3-3/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
