Chicago-Latrobe

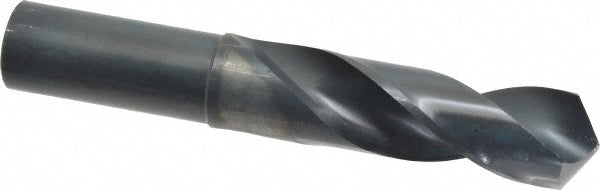

1-1/16" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Chicago-Latrobe 48568
MFR# 48568Series 157
$93.59List $120.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1-1/16
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 48568 is a 1-1/16" High Speed Steel Screw Machine drill bit with a Coated finish, 118° point. Suited for cast iron, non-ferrous metal, steel. 4 flute length, 6-1/4 overall length. Series 157.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0015 in
Drill bit gradeGeneral Purpose
Drill bit size in1-1/16
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle118
Flute length in4
Flute typeSpiral
Number of flutes2
Overall length in6-1/4
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
