Chicago-Latrobe

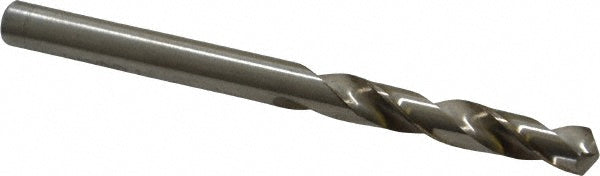

#19 High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48719
MFR# 48719Series 157
$1.77List $2.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 48719 is a #19 High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 1-1/16 flute length, 2-1/8 overall length. Series 157.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size0.1660
Drill bit size range0.1500 to 0.2000
Drill bit size wire#19
Drill length typeScrew Machine
Drill point angle118
Flute length in1-1/16
Flute typeSpiral
Number of flutes2
Overall length in2-1/8
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
