15/64" High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48801

Chicago-Latrobe

15/64" High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48801

MFR# 48801Series 157

$2.94List $3.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2

Description

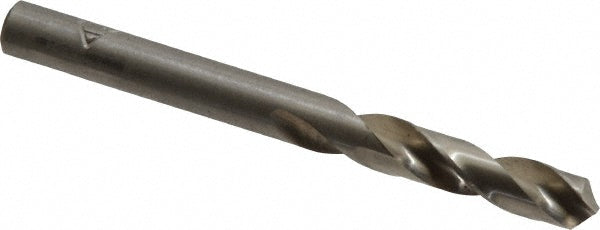

The Chicago-Latrobe 48801 is a 15/64" High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 1-5/16 flute length, 2-7/16 overall length. Series 157.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size in15/64
Drill bit size letterA
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle118
Flute length in1-5/16
Flute typeSpiral
Number of flutes2
Overall length in2-7/16
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
