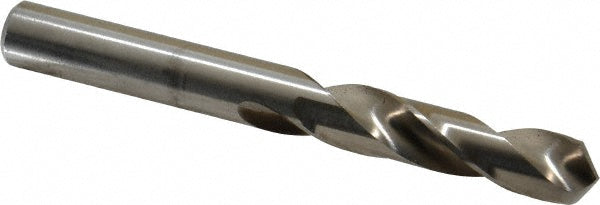

Letter P High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48816

Chicago-Latrobe

Letter P High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48816

MFR# 48816Series 157

$4.75List $6.08 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 48816 is a Letter P High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 1-11/16 flute length, 2-15/16 overall length. Series 157.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.3230
Drill bit size letterP
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle118
Flute length in1-11/16
Flute typeSpiral
Number of flutes2
Overall length in2-15/16
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
