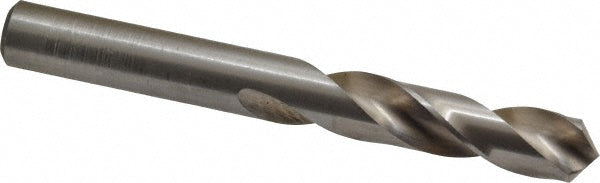

Letter V High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48822

Chicago-Latrobe

Letter V High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48822

MFR# 48822Series 157

$6.87List $8.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 48822 is a Letter V High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 1-7/8 flute length, 3-1/4 overall length. Series 157.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.3770
Drill bit size letterV
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle118
Flute length in1-7/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
