Chicago-Latrobe

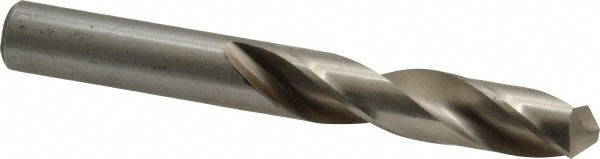

Letter Z High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48826
MFR# 48826Series 157
$10.79List $13.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 48826 is a Letter Z High Speed Steel Screw Machine drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 2 flute length, 3-3/8 overall length. Series 157.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.4130
Drill bit size letterZ
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle118
Flute length in2
Flute typeSpiral
Number of flutes2
Overall length in3-3/8
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
