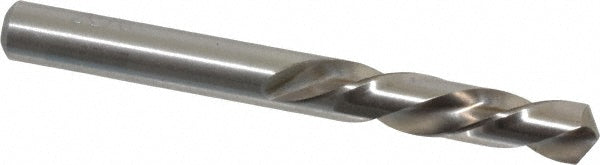

9/32" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48918

Chicago-Latrobe

9/32" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48918

MFR# 48918Series 157L

$9.45List $12.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes2

Description

The Chicago-Latrobe 48918 is a 9/32" HSS Screw Machine drill bit, 118° point. Suited for aluminum, copper, magnesium, slate, thermoplastic, wood. 1-1/2 flute length, 2-11/16 overall length. Series 157L.

Specifications

Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle118
Flute length in1-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in2-11/16
Point typeStandard
Primary workpiece materialAluminum; Copper; Magnesium; Slate; Thermoplastic; Wood
Shank diameter0.2813
Shank length in1-3/16
Shank typeStraight
Spiral typeRegular
StandardsISO
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
