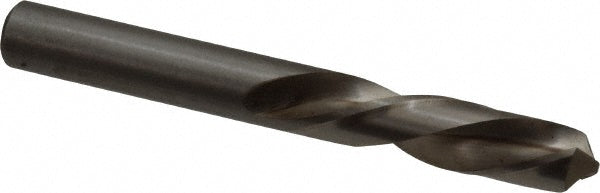

25/64" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48925

Chicago-Latrobe

25/64" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48925

MFR# 48925Series 157L

$17.82List $22.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2

Description

The Chicago-Latrobe 48925 is a 25/64" HSS Screw Machine drill bit, 118° point. Suited for aluminum, copper, magnesium, slate, thermoplastic, wood. 1-7/8 flute length, 3-1/4 overall length. Series 157L.

Specifications

Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle118
Flute length in1-7/8
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialAluminum; Copper; Magnesium; Slate; Thermoplastic; Wood
Shank diameter0.3906
Shank length in1-3/8
Shank typeStraight
Spiral typeRegular
StandardsISO
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
