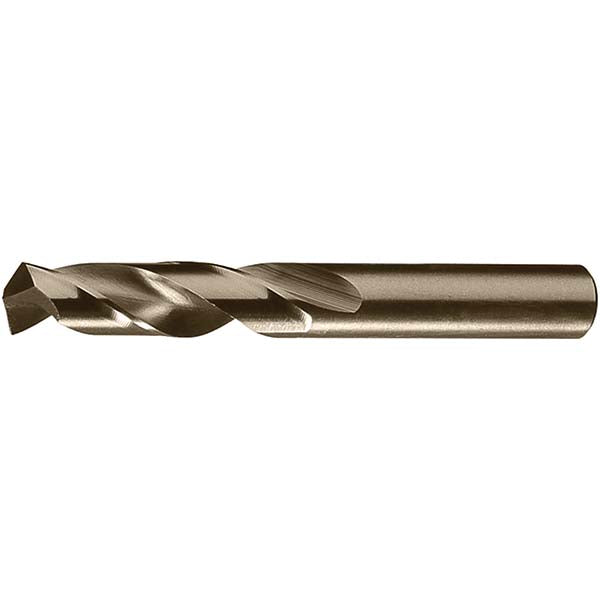

0.0984" Cobalt Drill Bit, Oxide, 135° point - Chicago-Latrobe 49005

Chicago-Latrobe

0.0984" Cobalt Drill Bit, Oxide, 135° point - Chicago-Latrobe 49005

MFR# 49005Series 559

$2.42List $3.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Chicago-Latrobe 49005 is a 0.0984" Cobalt drill bit with a Oxide finish, 135° point. Suited for tool steel, alloyed steel, carbon steel, cast iron. Series 559.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit size0.0984
Drill bit size range0.0000 to 0.1000
Drill point angle135
Drill tip finish coatingOxide
Flute by diameter ratio4xD
Flute length0.5710
Flute typeSpiral
Material gradeM42
Maximum drilling depth0.3444
Number of flutes2
Overall length1.755
Point typeSplit
Primary workpiece materialTool Steel; Alloyed Steel; Carbon Steel; Cast Iron
Shank diameter0.0984
Shank length1.1840
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
