Chicago-Latrobe

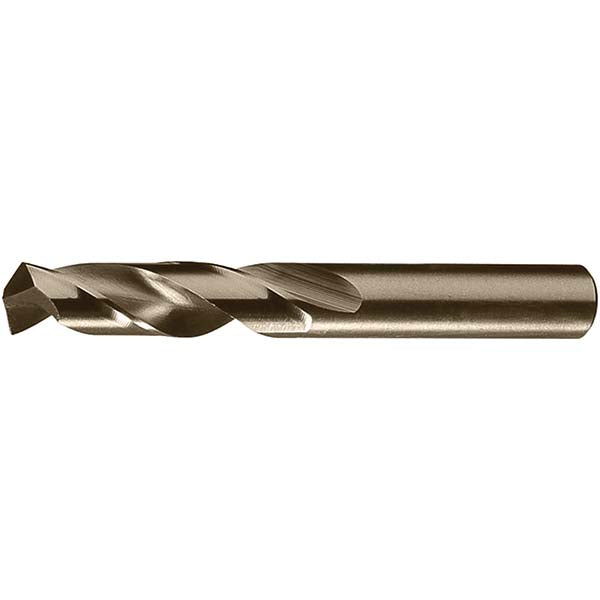

0.1299" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 49007
MFR# 49007Series 559
$2.96List $3.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Chicago-Latrobe 49007 is a 0.1299" Cobalt drill bit with a Straw finish, 135° point. Suited for tool steel, alloyed steel, carbon steel, cast iron. 2 overall length. Series 559.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1299
Drill bit size range0.1000 to 0.1500
Drill point angle135
Drill tip finish coatingOxide
Flute by diameter ratio4xD
Flute length0.7350
Flute typeRegular Spiral
Material gradeM42
Maximum drilling depth0.4540
Number of flutes2
Overall length in2
Point typeSplit Point
Primary workpiece materialTool Steel; Alloyed Steel; Carbon Steel; Cast Iron
Shank diameter0.1299
Shank length1.2650
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
