Chicago-Latrobe

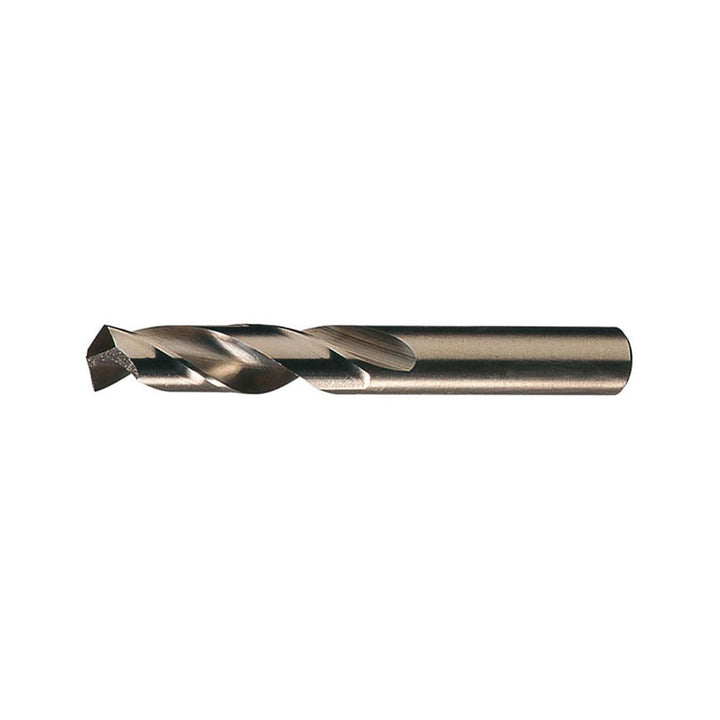

0.1575" Cobalt Screw Machine Drill Bit, Straw, 135° point - Chicago-Latrobe 49009
MFR# 49009Series 559
$3.56List $4.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Chicago-Latrobe 49009 is a 0.1575" Cobalt Screw Machine drill bit with a Straw finish, 135° point. Suited for cast iron, steel. Series 559.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1575
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Drill tip finish coatingOxide
Flute by diameter ratio4xD
Flute length0.8980
Flute typeRegular Spiral
Material gradeM42
Maximum drilling depth0.5513
Number of flutes2
Overall length2.2450
Point typeSplit Point
Primary workpiece materialCast Iron; Steel
Shank diameter0.1575
Shank length1.3470
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsISO
Tool materialCobalt
Tool performanceHeavy-Duty
