Chicago-Latrobe

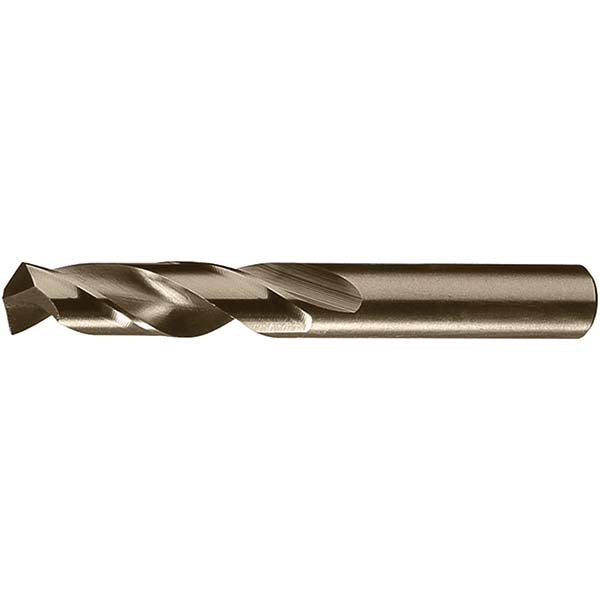

0.2362" Cobalt Drill Bit, Oxide, 135° point - Chicago-Latrobe 49014
MFR# 49014Series 559
$5.62List $7.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 49014 is a 0.2362" Cobalt drill bit with a Oxide finish, 135° point. Suited for tool steel, alloyed steel, carbon steel, cast iron. Series 559.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.2362
Drill bit size range0.2000 to 0.2500
Drill point angle135
Drill tip finish coatingOxide
Flute by diameter ratio4xD
Flute length1.1430
Flute typeSpiral
Material gradeM42
Maximum drilling depth0.8267
Number of flutes2
Overall length2.694
Point typeSplit
Primary workpiece materialTool Steel; Alloyed Steel; Carbon Steel; Cast Iron
Shank diameter0.2362
Shank length1.5510
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
